Rutgers University Gym Renovation

Rutgers Gymnastics Logo
Joining the BIG 10 Conference in 2014, Rutgers is making major investments to upgrade both their Athletics programs and facilities to compete on the national stage in one of the premier NCAA conferences. Rutgers Gymnastic was in dire need of a new facility. Gymnastics had been relegated to a space at the end of a some basketball courts in a recreational building on campus. In 2018, construction began on the brand new 84 million dollar Athletic Performance Center. This new facility included an 11,000(approx) sqft gym for the gymnastics program.
In early 2019, they hired former Temple Head Coach Umme Salim-Beaslery and her staff. While at Temple, she and her staff rewrote the record books during their three seasons. When Umee was hired as head coach, she immediately contacted US Gym Products for the equipment and installation. Having worked with us at Temple University, she already knew about our unparalleled quality and attention to detail. The facility, having been designed by the former coaching staff, left us with having to fix some design flaws in the completed building.
The original plans called for a 48’x48′ recessed spring floor. This floor shared a 20×18 Resi mat area with the trampoline and balance beam. But the concrete pits for this resi mat, as well as the concrete pit for the spring floor, encroaches into the vault area. This would have pushed one of the vaults off-center with its pit. This is obviously unacceptable and needed to be fixed. So we reduced the spring floor down to a 44×44 floor. Using a wood platform system(fire-rated), we filled in the concrete pit to reduce its size. By reducing the floor by 4′, and filling in the concrete recess. The floor no longer interfered with the vaulting area.
Next, the pits for both the rod floor and spring floor were too deep. We built an infill system to raise both pits up so the rod floor and spring floor would be flush with the gym floor. Once that was complete, we were finally able to install the equipment.

The Gym Design Plan

The facility includes:

(1) 44×44 spring floor(recessed)
(2) floor beams
(4) competition beams(3 hard landing, 1 dual function w/resi & deep foam pits)
(3) vaulting table (resi, deep foam and hard landing)
(1) dual function single bar (deep foam on one side w/ resi mat on other)
2 – SA competition uneven bars
1 – single rail  w/both deep foam and resi pit landing areas
1 – Trench bar
3 – low beams
4 – floor beams
1 – Pommel horse

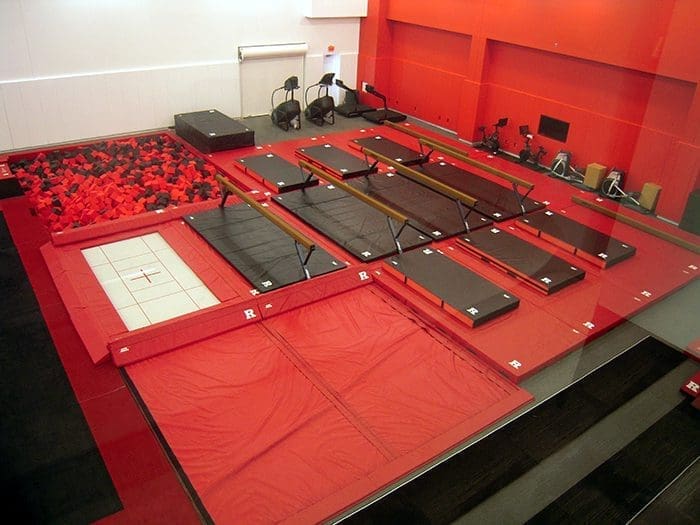

Here you can see an overview of the entire gym.

Rutgers Gymnastics New Gym Design

Balance Beam Area

Rutgers University Gymnastics New Balance Beams
Rutgers Gymnastics Balance Beam Area

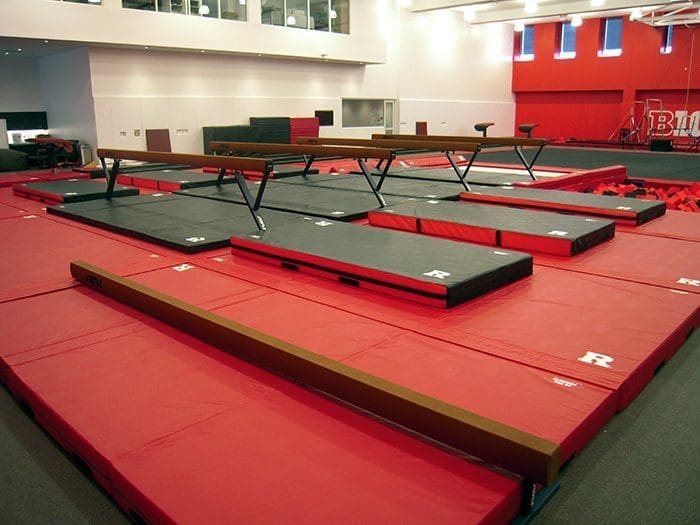

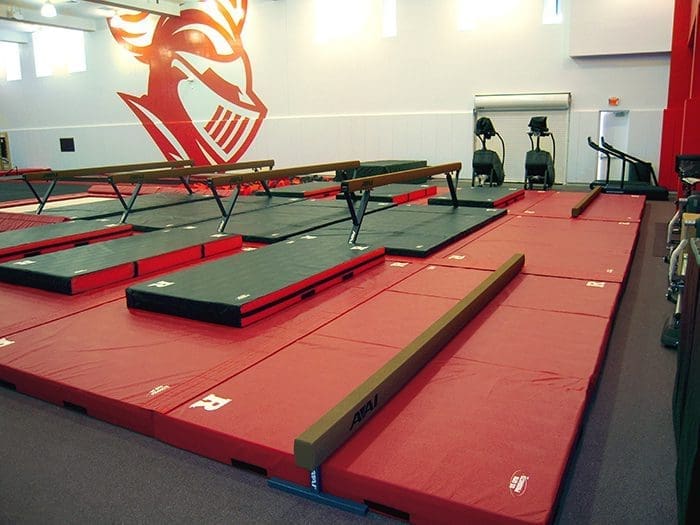

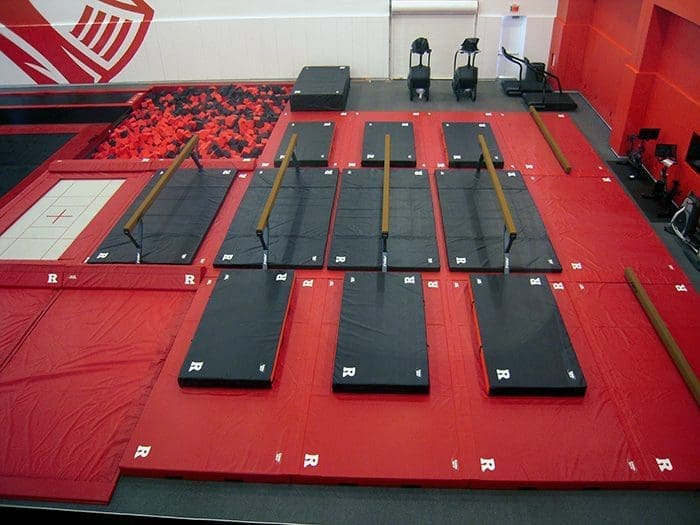

The beam area features (3) beams with hard landings, 1 beam with both a deep foam and resi pit landing area as well as (2) low beams. All beams have 20cm landing mats.
Rutgers beams with 20cm landing mats.
Rutgers balance beams.
All the mats in the beam area are seamed together with veclro connector strips. making this a very clean and safe training area.
Rutgers Balance Beam Area
The last feature that was added in to complete the balance beam area was custom leg pads.

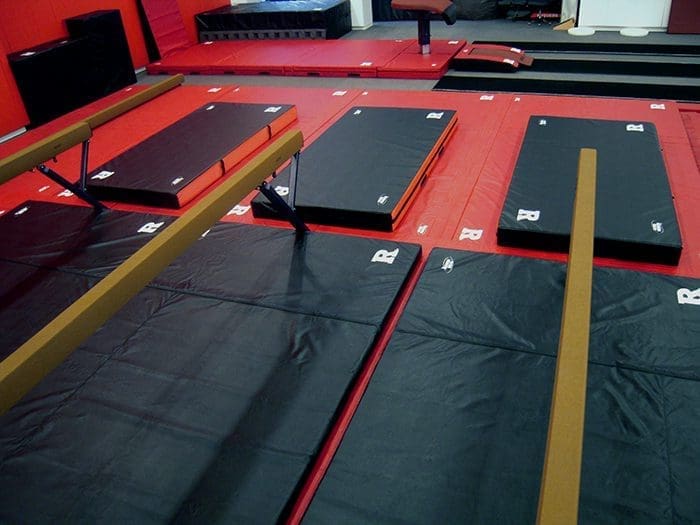

You can also see how all the matting are seemed together for maximum safety. Including the Rutgers logos on the mats, make the gym feel like home for the team.
Rutgers logo on new gym mats

Trampoline & Balance Beam to Pits

Rutgers gymnastics trampoline area

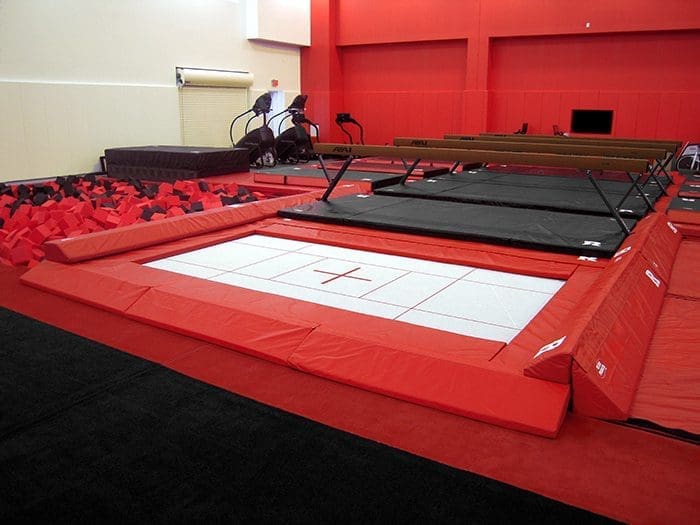

We are particularly proud of this area. We custom designed and installed 8″ thick padding to transition form both the balance beam and trampoline going into the resi and deep foam pits. Additionally, for added safety, we put a sloped border going from the trampoline to the spring floor.
Rutgers beams
Rutgers Gymnastics Balance Beams
Gymnastics Balance Beams Rutgers University

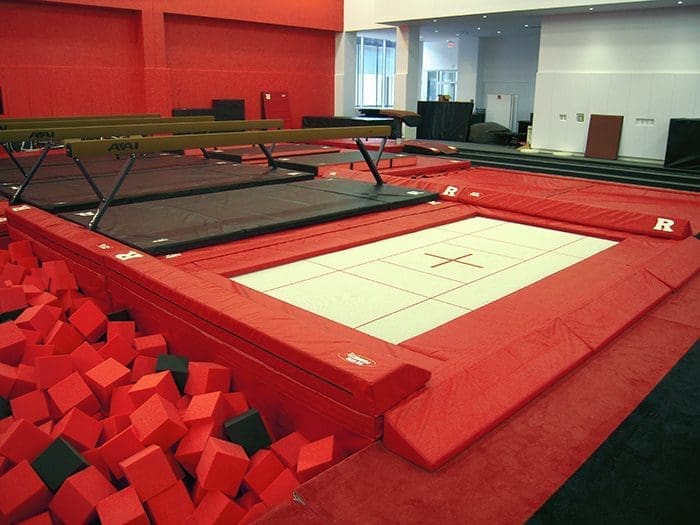

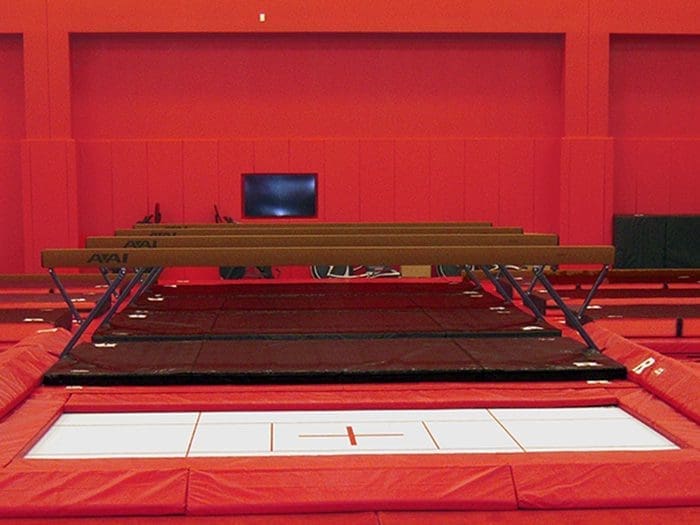

First, we installed the trampoline so the top of the 2″ thick side pads would be flush with the top of the 20cm beam mat. We then connected the beam and tramp pads with a connector strip for cleanliness and safety.
Rutgers beveled pads and pit
Rutgers gymnastic pit
Rutgers gymnastics mats

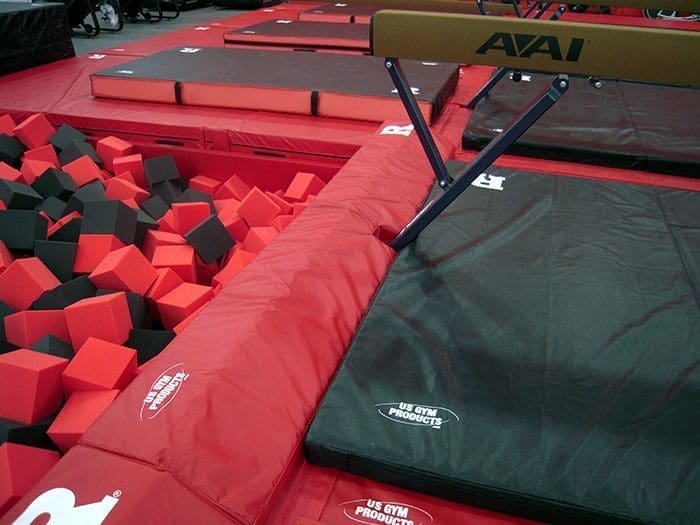

Additionally, we designed the 8″ beveled pads that go into the pit so they would be identical and continuous across both the beam & trampoline ends.
Beam & trampoline dismount area Rutgers

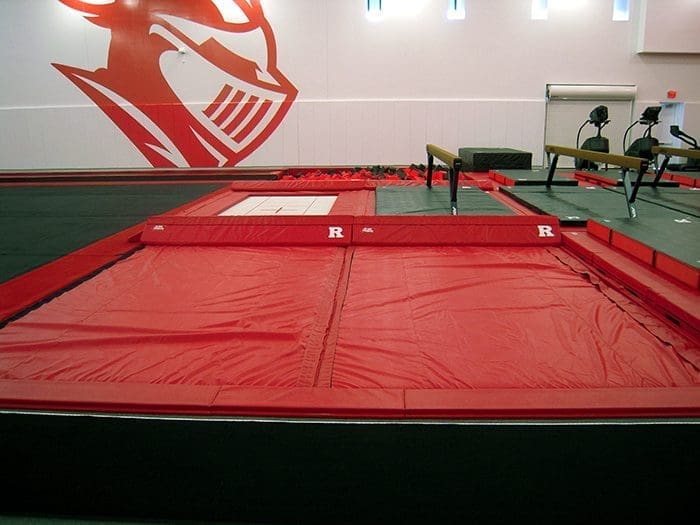

Here you can see where the spring floor, balance beam and trampoline all dismount into the resi mat area. You can also see how close the vault runway is to the pit edge padding. As discussed above, This pit was reduced by 2′ in length(vault runway to tramp/beam). If we had not done this modification. The vault would have been pushed off center of its pit by a foot. Our solution solved this problem while maintaining safety for the beam & trampoline dismount area.

Bar Area

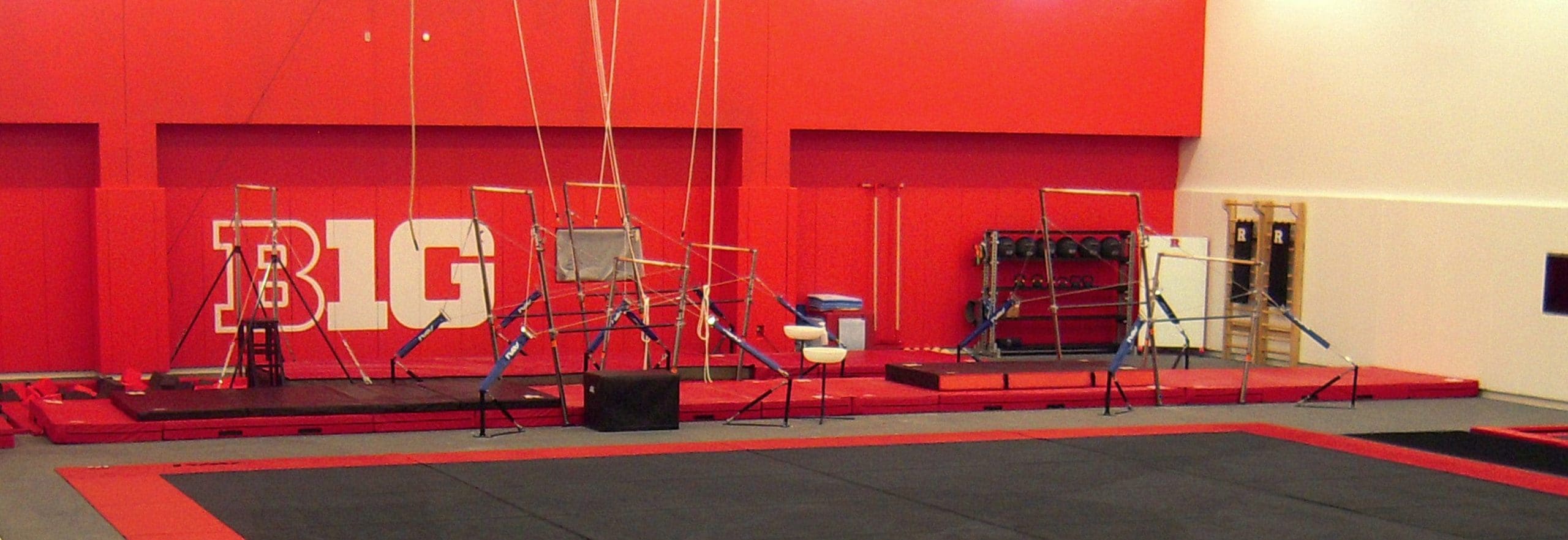

Rutgers Gymnastics beam & trampoline area.

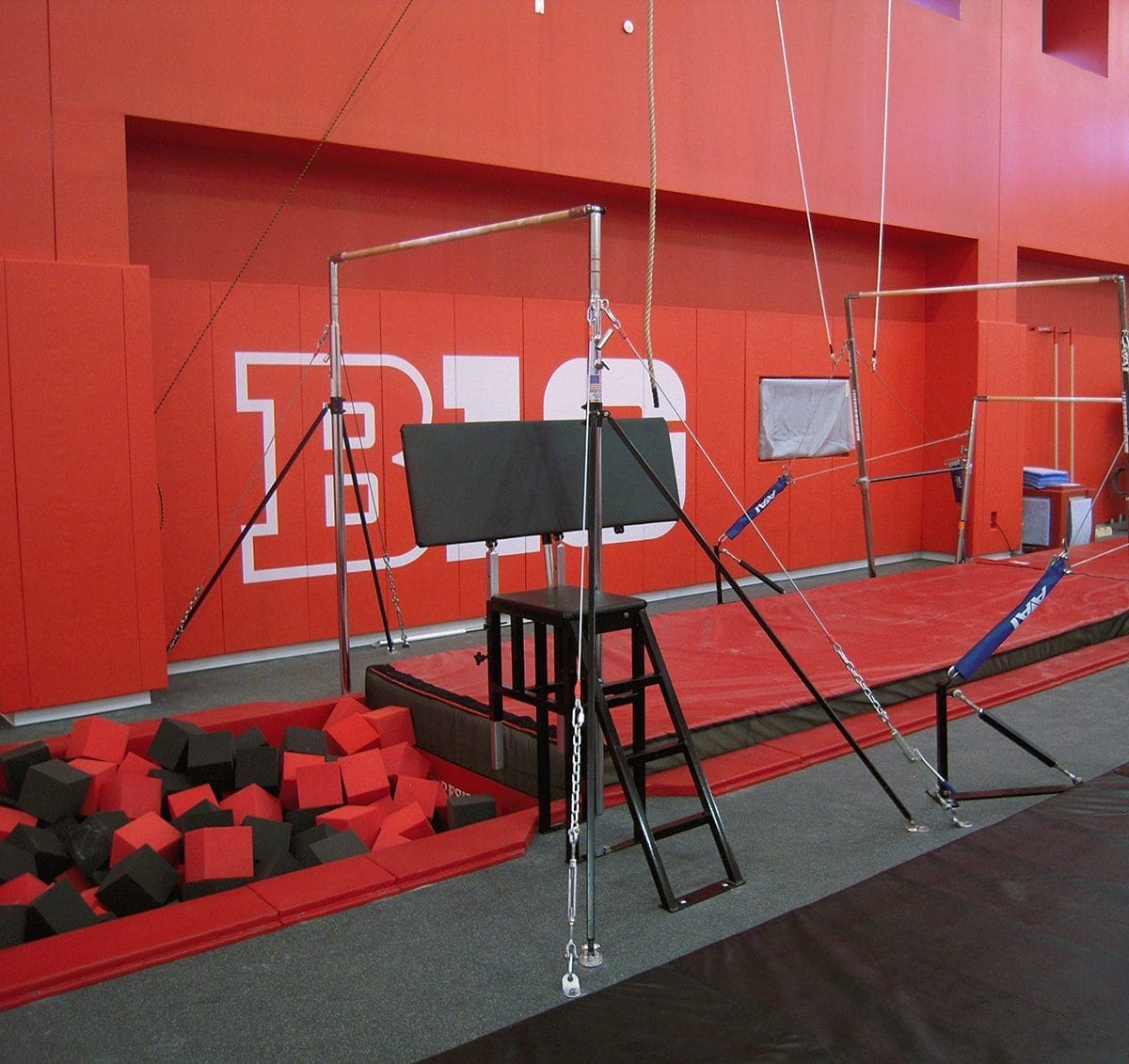

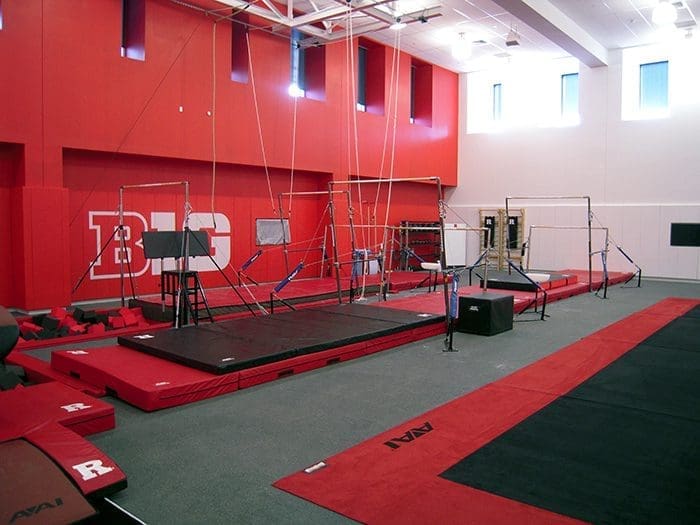

The bar area is pretty straight forward. You have (2) ueneven bars with 20cm hard mats underneath. We includ an uneven bar that dismounts onto a resi mat and a single bar that has a resi mat on one side and a deep foam pit on the other.
Rutgers University high bars gymnastics

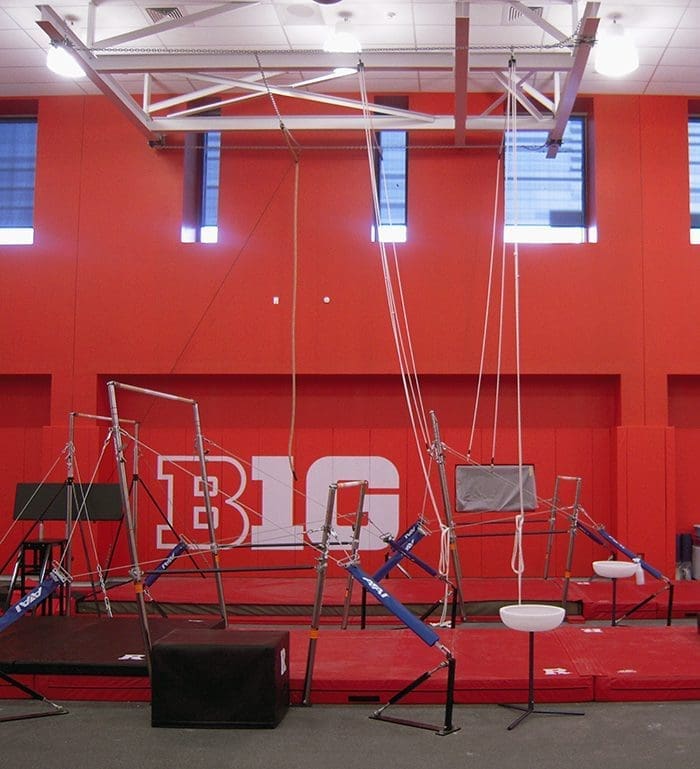

The high bar also has a custom made spotting platform to fit with the edge padding and underneath the cables and diagonal braces.
Rutgers Gymnastics Spotting
Rutgers Gymnastics Spotting Platform
Rutgers Gymnastics Spotting Platform Ceiling

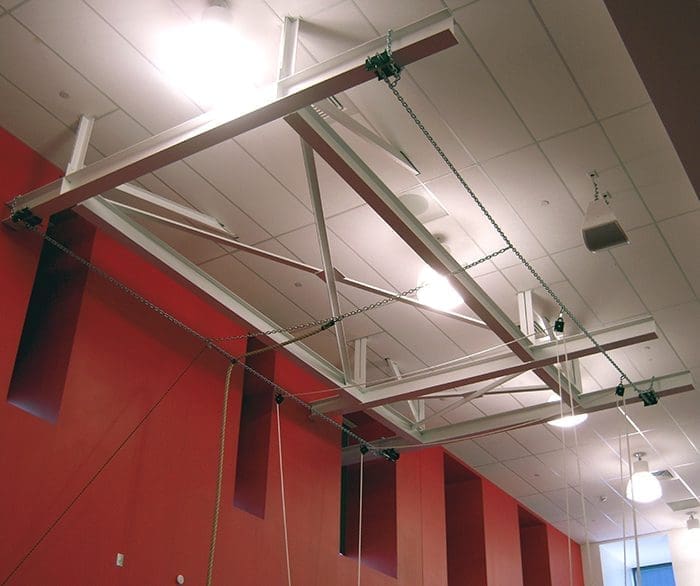

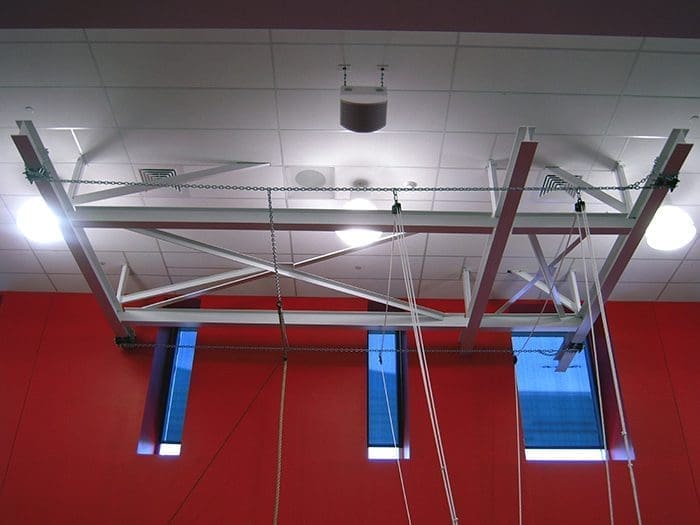

Since the I-beams did not line up where we needed them to be, we attatched the spotting rig directly to them. We ran high strength chains between the beams and attached the spotting rigs to them.
Rutgers Gymnastics New Gym Climbing rope
Rutgers Gymnastics Gym Climbing rope

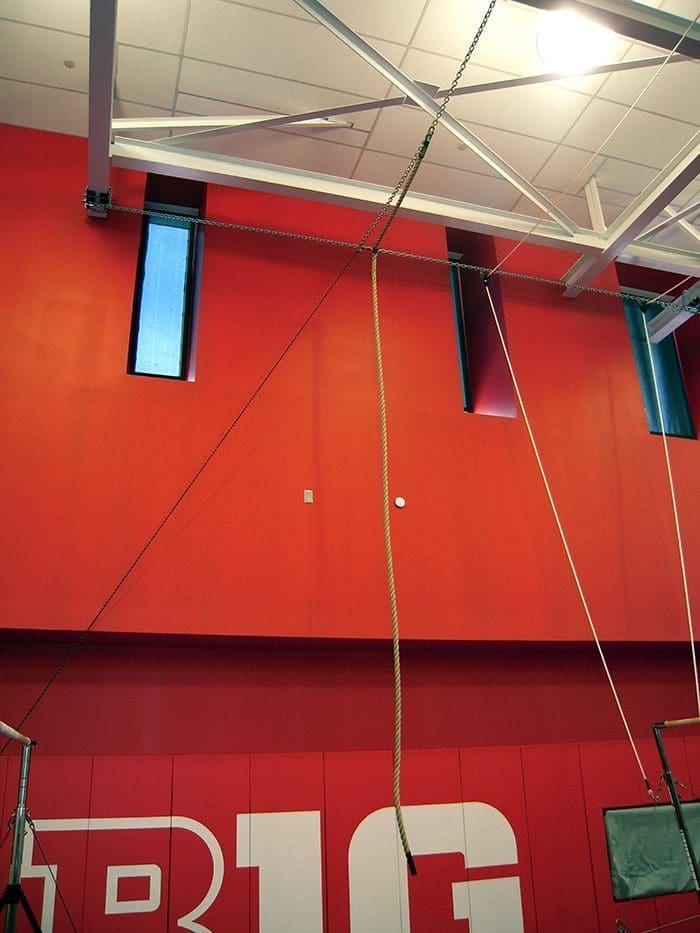

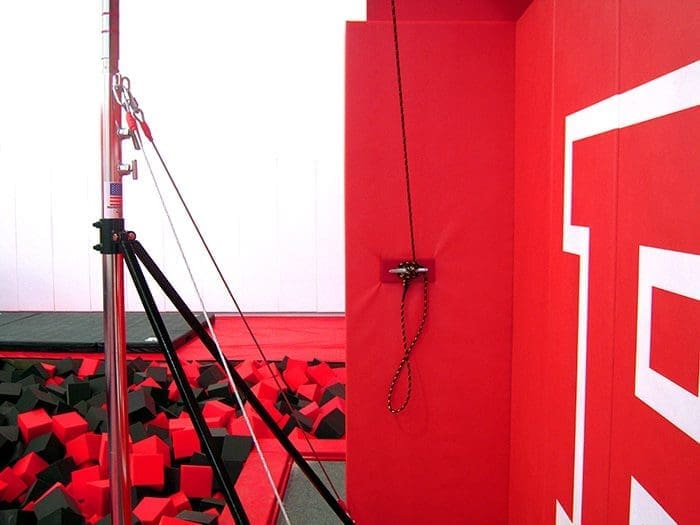

We also ran a climbing rope that centered over the resi mat between the high bar and uneven bars. Typically, having a rope centered over a resi mat that is used for dismounts would cause a problem. But we designed the line to be pulled off to the side with a small rope and pulley system. It tied off on the wall to the side of the pit.

Stall Bars

Rutgers Gymnastics Stall Bars

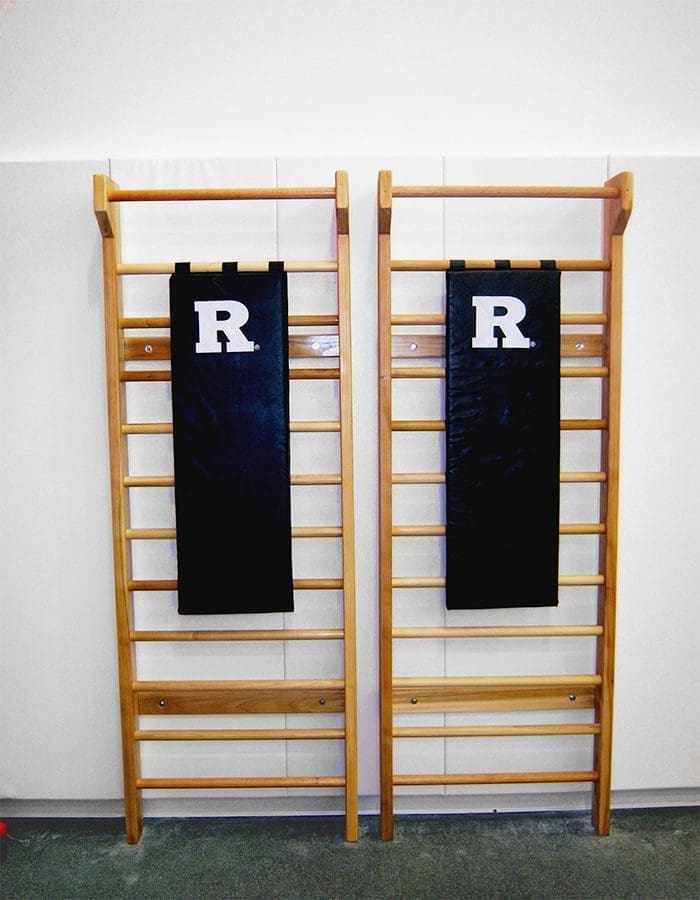

What would seem like the simplest item to install was by far the hardest. The stall bars were attached to a wall with no structure to bolt into. The wall consisted of structural steel studs covered w/drywall. On top of the drywall were furring strips for the 2.5″ thick wall pads. And of course, the steel studs did not line up with the attachment points on the stall bars. So we had to attach (2) 3″ x 72″ 1/2″ thick steel plates directly to the steel studs. We then lined up the stall bars and drilled holes into the steel plates. We then threaded the holes, then hung the wall pads up. Next, we cut holes through the wall pads over the threaded holes in the steel plates. We then made washers that were about 4″ long. We put these washers through the wall pads up against the steel plates. Finally ran long bolts through the washers and threaded them into the holes in the steel plates. The stall bars are tightened against the washers that are against the steel plates. This prevents the stall bars from putting any pressure on the wall pads, so they maintain their flat pristine look.

Vault Area

Rutgers Gymnastics Vault Tables

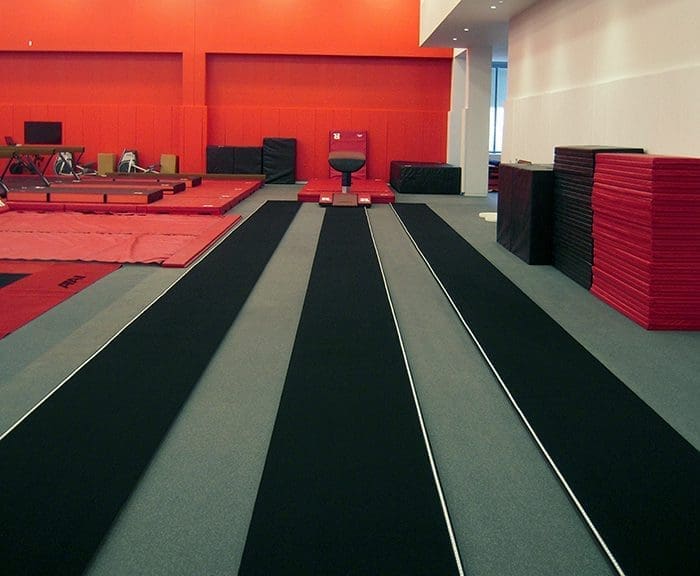

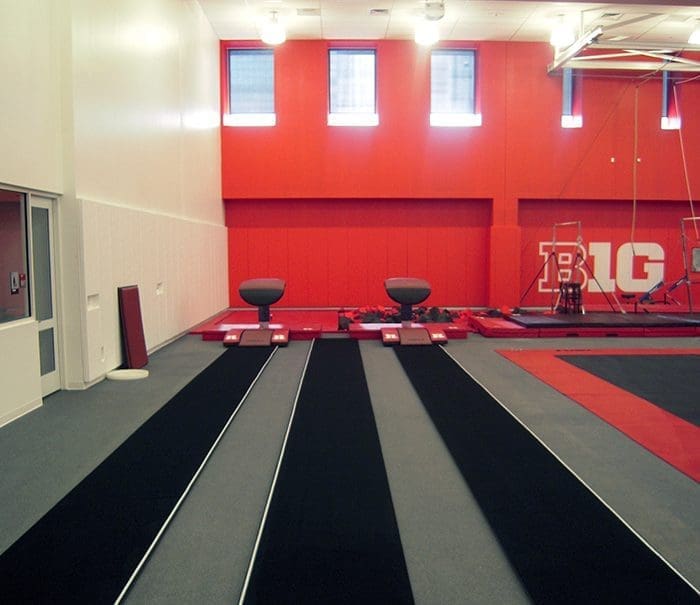

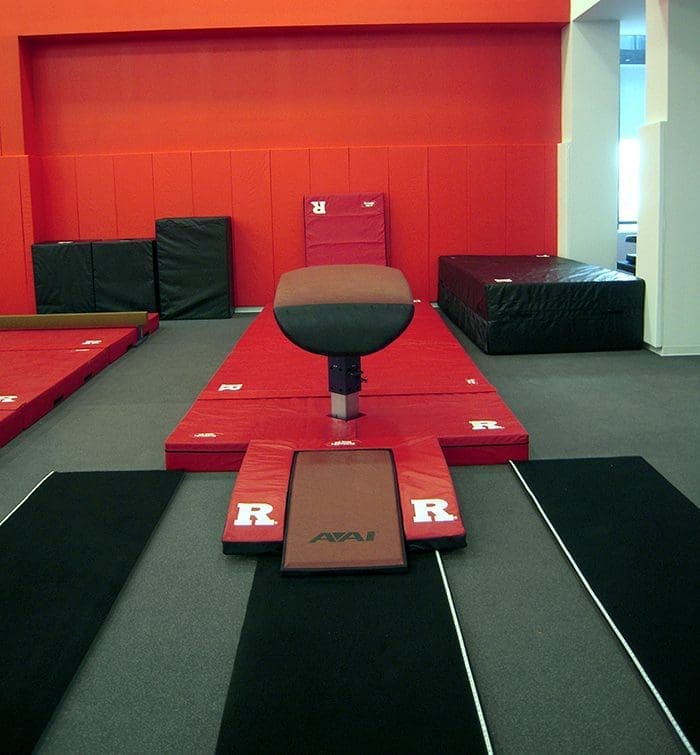

The vaulting area consists of (3) vault tables. Above is the hard landing vault. This area features am 18′ long 20cm landing mat.
Rutgers Gymnastics Vaults
Rutgers Gymnastics Vaulting Tables
Two Rutgers Gymnastics Vault Tables

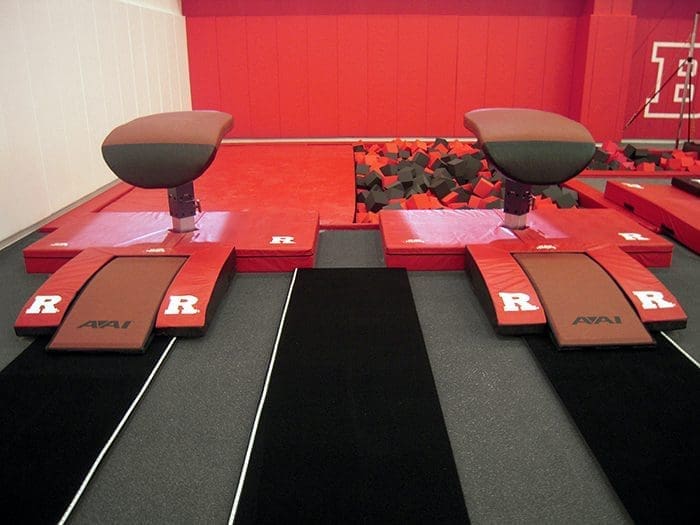

The other (2) vaulting tables go into a resi pit and a deep foam pit. All the vaulting tables have been anchored into the concrete so they cannot shift. We also made custom vaulting board safety zones in Rutgers colors with their Logo.

Tumbl Trak/Rod Floor Area

Gymnastics Tumbl Trak at Rutgers
Gymnastics Tumbl Trak at Rutgers University

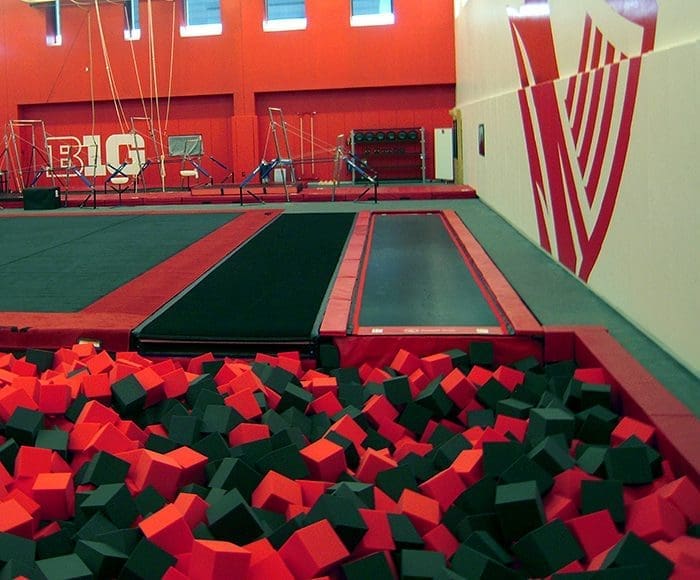

The gym also included both a 40′ Tumbl Trak and a 40′ Rod floor that had a deep foam pit. This was another area where the concrete pits were too big and deep for the equipment. We had to raise the rod floor up 1″ then shim the Tumbl Trak over to lock it against the pit wall. This left about a 2″ gap between the Rod floor and Tumbl Trak. We used 2″ thick carpet bonded foam to fill in the gap between the rod floor and Tumbl Trak. Then using a custom connector strip, we velcroed the rod floor and Tumble Trak together covering up the filled in gap. We also used connectors strips to connect between the gym floor and both the Tumbl Trak and rod floor. This made for a very clean look befitting one of the newest and best college training facilities in the country.
